DevOps project · KOLVerse

Designed for repeatable delivery.

A repository-verified look at how I configured and operated three branch-aware application pipelines from GitLab through Jenkins and Docker to AWS EC2.

KOLVerse · DevOps & CI/CD implementation journey

From repository
to production.

How three application repositories became repeatable Docker artifacts, branch-aware Jenkins pipelines, credential-bound EC2 deployments, Prisma-ready releases, and publicly verified production services.

GitLabJenkinsBunDockerGitLab RegistryAWS EC2TerraformALBRoute 53

Starting point

The delivery problem before automation

KOLVerse consists of a public Next.js Website, a NestJS/Prisma API, and an internal Next.js Admin. GitLab held source, but production still needed deterministic dependencies, repeatable artifacts, safe credentials, controlled server updates, database migration, and end-to-end verification.

Before

DeveloperGitLabManual buildServer

Target

DeveloperGitLabJenkinsDockerRegistryEC2Production

Verified evidence

Dockerfiles, Jenkinsfiles, build scripts, history, Jenkins captures, runtime exports, and Terraform.

Evidence boundary

No supplied GitLab, Registry, Credentials, local Docker, or AWS Console screenshot. The page does not invent them.

Step 1 · Containerization

Prepare a reproducible API image

The first task was making the API build independently of a developer machine. Application source, Prisma migrations, Bun’s lockfile, Docker configuration, build scripts, and Jenkinsfile remain versioned together.

Deployment-facing repository structureapi/

plaintext

api/
├── src/
├── prisma/
├── scripts/
│   ├── build.staging.sh
│   └── build.prod.sh
├── jenkins/
│   └── notifyTelegram.groovy
├── package.json
├── bun.lock
├── Dockerfile
├── .dockerignore
└── Jenkinsfile

Actual API runtime stageapi/Dockerfile

dockerfile

FROM oven/bun:1.3.6-slim AS runner
WORKDIR /app
ENV NODE_ENV=production
ENV TZ=Asia/Bangkok
COPY --from=builder /app/node_modules ./node_modules
COPY --from=builder /app/package.json ./
COPY --from=builder /app/dist ./dist
COPY --from=builder /app/prisma ./prisma
USER bun
EXPOSE 8080
CMD ["sh", "-c", "bunx prisma migrate deploy && bun dist/src/main.js"]

Builder

Installs the locked dependency graph and compiles NestJS.

Runner

Copies only runtime dependencies, dist, package metadata, and Prisma.

Non-root

USER bun reduces process privilege.

Startup

Migration must succeed before NestJS starts, making schema readiness part of deployment readiness.

View complete API Dockerfileapi.Dockerfile

View full source

Loading source…

View Website production Dockerfilewebsite.Dockerfile.production

View full source

Loading source…

Steps 2–3 · Docker boundary

Control the context, then prove the container locally

Actual API .dockerignoreapi/.dockerignore

plaintext

node_modules
dist
.git
.gitignore
.idea
.vscode
*.swp
.env
.env.*
!.env.example
*.log
coverage
test
Dockerfile*
docker-compose*
.dockerignore

node_modules / dist

Rebuild inside the image instead of accepting host output.

.git / IDE

Exclude history and editor state.

.env and .env.*

Prevent secrets entering the Docker context.

!.env.example

Keep variable documentation without values.

View complete .dockerignoreapi.dockerignore

View full source

Loading source…

Pre-CI verification pathdeveloper terminal

bash

docker build --platform linux/amd64 -t kolverse-api:local .
docker run --rm --env-file .env.local -p 8080:8080 kolverse-api:local
curl -fsS http://127.0.0.1:8080/api/v1/health-check

This build → run → health sequence validates the production architecture, runtime configuration, Prisma startup, port 8080, and health route before Jenkins automates it. No local terminal capture was preserved.

Step 4 · Branch model

Give each GitLab branch a delivery meaning

developmentInstall · lint · format · test · build

stagingValidation + staging image and deployment

main / productionValidation + approval + production release

Validation runs on all discovered branches. Release preparation only runs for staging, main, and production.

Step 5 · Jenkins setup

Create one Multibranch Pipeline per application

Multibranch jobs discover branches and load the root Jenkinsfile. Branch conditions then select validation, staging, or production behavior.

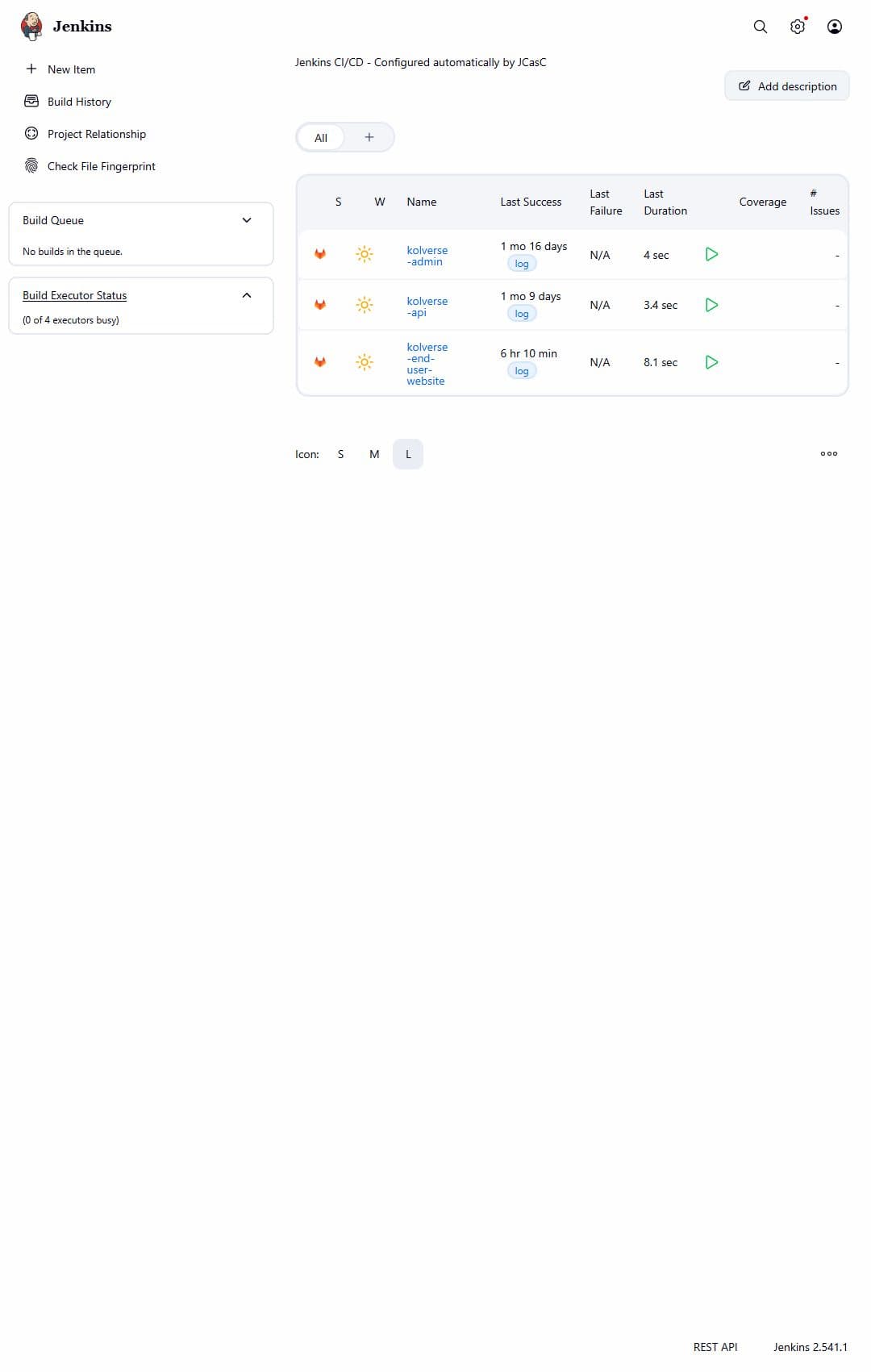

KOLVerse Jenkins dashboard — Separate live Website, API, and Admin jobs match the repository boundaries.

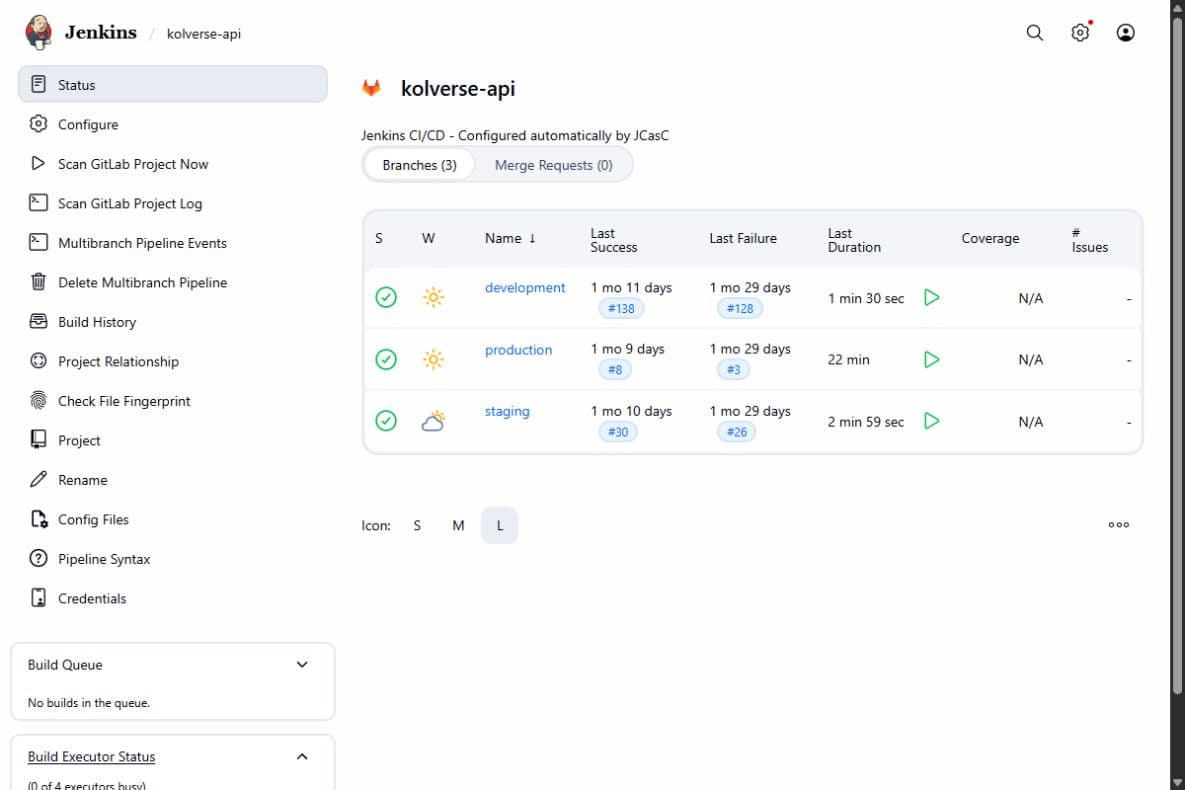

KOLVerse API Multibranch job — The API job discovers application branches independently.

Job typeMultibranch Pipeline

Script pathJenkinsfile

ConnectiongitLabConnection('gitlab')

Retention20 builds

Timeout45 minutes

ConcurrencyDisabled

Validation agentBun container

SCMGitLab

Steps 6–7 · Trigger and access

Connect GitLab, then bind credentials safely

Webhook configuration pathGitLab project settings

plaintext

GitLab → Settings → Webhooks / Integrations
URL: https://<jenkins-host>/project/<multibranch-job>
Events: Push events + Merge Request events

git push → webhook → branch scan → Jenkinsfile → pipeline

Website webhook did not trigger builds

I compared Website against the working Admin integration, corrected the differing configuration, rescanned the Multibranch project, and retriggered staging. Repository history records the fix.

gitlab-registryUsername/password

Registry login

kolverse-ec2-ssh-keySSH private key

EC2 identity

kolverse-*-hostSecret text

Target host

*-envSecret file

Frontend build variables

sonarqube-tokenSecret text

Website analysis

Actual Registry credential bindingapi/Jenkinsfile

groovy

withCredentials([
  usernamePassword(
    credentialsId: 'gitlab-registry',
    usernameVariable: 'REG_USER',
    passwordVariable: 'REG_PASS'
  )
]) {
  sh '''
    printf '%s' "$REG_PASS" | docker login "$REGISTRY_HOST" \
      -u "$REG_USER" --password-stdin
  '''
}

Jenkins injects values only inside withCredentials; the password is passed through standard input and never committed.

Step 8 · Pipeline as code

Execute dependency, quality, test, and build gates

React Flow

Interactive stage components follow the real API Jenkinsfile.

Actual validation stagesapi/Jenkinsfile

groovy

stage('Install') { steps { sh 'bun install --frozen-lockfile' } }
stage('Validate') {
  steps {
    sh 'bun run lint:check'
    sh 'bun run format:check'
  }
}
stage('Test') { steps { sh 'bun run test' } }
stage('Build App') { steps { sh 'bun run build' } }

Frozen install

CI must use the dependency graph committed in bun.lock.

Lint / format

Either failure stops the release path.

Tests

API runs bun run test; Admin currently has a smaller validation path.

Build

NestJS must compile before an artifact can be released.

View full API Jenkinsfileapi.Jenkinsfile

View full source

Loading source…

View full Website Jenkinsfilewebsite.Jenkinsfile

View full source

Loading source…

Step 9 · Release control

Create a traceable tag, then require approval

Immutable release identityapi/Jenkinsfile · Prepare Release

groovy

def shortSha = sh(script: 'git rev-parse --short HEAD', returnStdout: true).trim()
def imageDate = sh(script: "date -u +'%Y%m%d'", returnStdout: true).trim()
env.RELEASE_ENV = env.BRANCH_NAME == 'staging' ? 'staging' : 'production'
env.TAG = "${imageDate}-${shortSha}"

Example20260809-a91f24c

Date identifies the release window; SHA maps the running image to source.

Actual production gateapi/Jenkinsfile

groovy

stage('Build & Push Production') {
  when { anyOf { branch 'main'; branch 'production' } }
  steps {
    input message: 'Deploy API to PRODUCTION?', ok: 'Deploy'
    // authenticated build and push follows
  }
}

Website and API require a human decision before production. Admin currently lacks the equivalent gate.

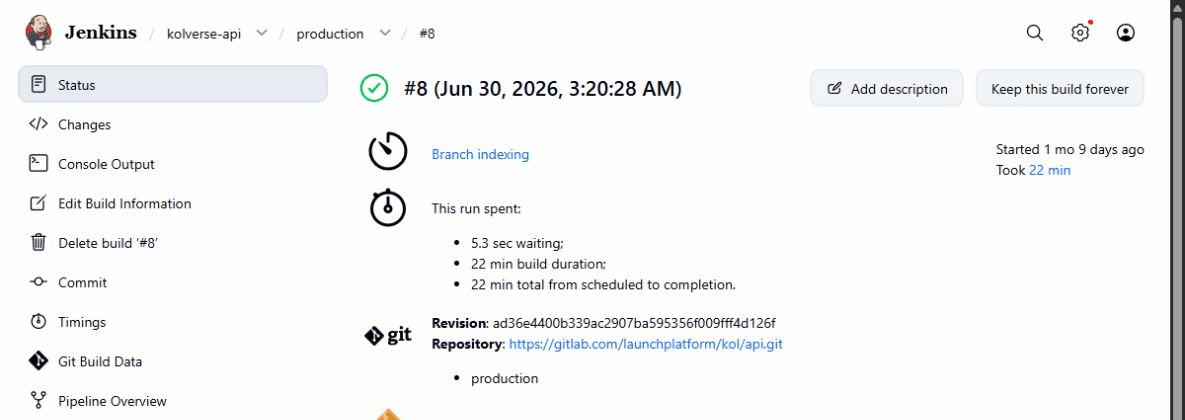

Successful API production pipeline — Sanitized live evidence of approval and a completed production run.

Steps 10–11 · Artifact

Build once and publish to GitLab Registry

Actual production image scriptapi/scripts/build.prod.sh

bash

ENV=production
TAG=${1:-v1.0.0}
REGISTRY="registry.gitlab.com/launchplatform/kol/api"
IMAGE="$REGISTRY/$ENV"

docker build \
  --platform linux/amd64 \
  -f "$ROOT_DIR/Dockerfile" \
  -t "$IMAGE:$TAG" \
  "$ROOT_DIR"

docker push "$IMAGE:$TAG"
docker rmi "$IMAGE:$TAG" || true

Git commitYYYYMMDD-SHAlinux/amd64GitLab Registryimmutable image

The script builds the repository root with the actual Dockerfile, pushes the tag, and removes the local copy. EC2 pulls an existing artifact instead of compiling production source.

View complete production build scriptapi-build.prod.sh

View full source

Loading source…

Steps 12–13 · Runtime deployment

Prepare EC2, then update only the API

API EC2
├── Docker Engine
├── Docker Compose
├── /home/admin/project
│   ├── docker-compose.yaml
│   └── .env.production
└── app + infrastructure containers

Terraform supports separate Website, API, and Admin EC2 workloads. The API runtime also contains PostgreSQL, Redis, MinIO, Neo4j, OpenSearch, and observability services.

Actual targeted Compose deploymentapi/Jenkinsfile · Deploy Production

bash

cp docker-compose.yaml docker-compose.yaml.bak-$BUILD_NUMBER
perl -0pi -e 's#production-image:[^\n\r ]+#production-image:$TAG#' docker-compose.yaml
docker compose --profile production -f docker-compose.yaml config --quiet
docker compose --profile production -f docker-compose.yaml pull backend
docker compose --profile production -f docker-compose.yaml up -d --no-deps backend

Backup

Preserve the previous Compose definition.

Retag

Point backend at the new immutable image.

Validate

Fail before service changes when Compose config is invalid.

Pull

Download the built artifact.

Replace

--no-deps prevents infrastructure services restarting with the API.

Registry login crossed two shell contexts

Jenkins and remote EC2 are different shells. The fix pipes the bound password into docker login --password-stdin on EC2 before running Compose.

Migration and verification

Make schema and public traffic part of readiness

New imageContainer startsprisma migrate deployNestJS startsHost healthPublic health

Actual two-stage health verificationapi/Jenkinsfile

bash

for i in $(seq 1 72); do
  curl -fsS http://127.0.0.1:8080/api/v1/health-check \
    >/dev/null 2>&1 && exit 0
  sleep 5
done
exit 1

curl -fsS --retry 24 --retry-delay 10 \
  https://api.kolverse.ai/api/v1/health-check >/dev/null

Host check

Pull → replacement → Prisma migration → NestJS on 8080.

Public check

Target health → ALB → TLS → Route 53 → public endpoint.

Migration risk

A backward-incompatible migration means reverting only the image may not restore the previous database/application contract.

Running did not mean publicly ready

ALB needs consecutive target checks while migration and startup take time. The pipeline polls localhost first, then retries the public URL.

Real production release

Follow one API deployment end to end

01
Merge reaches main or production.
02
GitLab webhook fires and Jenkins discovers the branch.
03
Frozen install, lint, format, tests, and NestJS build pass.
04
YYYYMMDD-shortSHA is generated.
05
An operator approves production.
06
The linux/amd64 image builds and pushes.
07
Jenkins binds Registry, host, and SSH credentials.
08
EC2 logs into Registry.
09
Compose is backed up, retagged, and validated.
10
Backend is pulled and replaced with --no-deps.
11
Prisma migration runs before NestJS.
12
Local then public health checks pass.
13
Telegram reports the result.

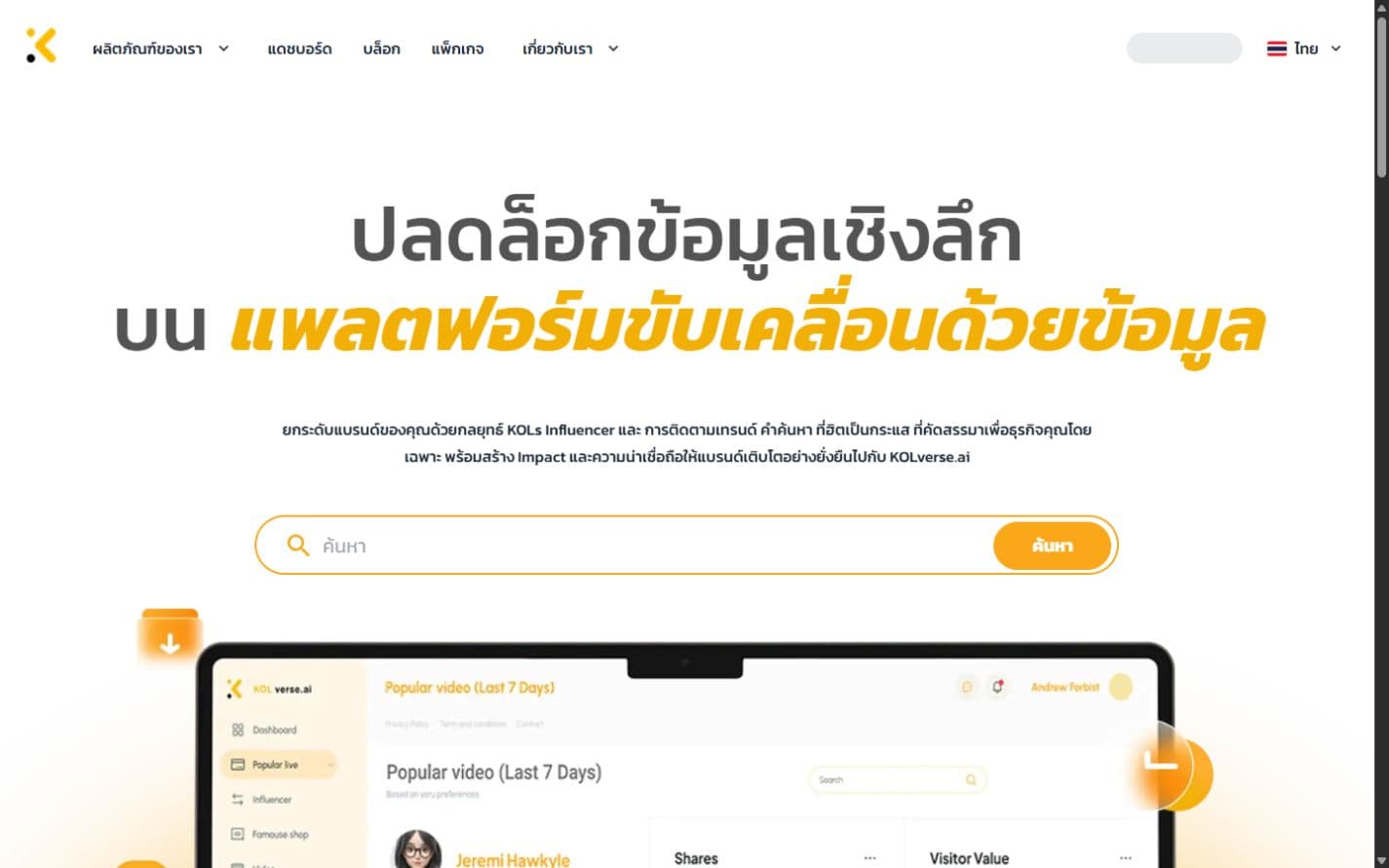

KOLVerse production website — The loaded production product is the final user-facing evidence.

AWS traffic path

Only now, follow traffic from DNS to the container

UserRoute 53ALB + ACMHost ruleTarget groupEC2Docker ComposeApplication

Terraform defines HTTPS, hostname routing, target groups, security boundaries, and Route 53 aliases. The API target group checks /api/v1/health-check.

Final architecture

Every component now has an implementation story

React Flow

The polished architecture appears last because each box, credential boundary, artifact transition, server update, and health gate has already been explained.

My contribution

What I implemented and maintained

Containerized Website, API, and Admin delivery paths.

Implemented three Jenkins Multibranch pipelines.

Connected GitLab events to Jenkins.

Configured credential-bound Registry and EC2 deployment.

Implemented branch-aware staging and production paths.

Added immutable release tagging.

Integrated Prisma migration into API readiness.

Added host and public-edge health verification.

Debugged webhooks, remote Registry login, Compose profiles, and ALB readiness.

Worked with supporting AWS/Terraform infrastructure and runbooks.

Claims are limited to repository and configuration evidence; Jenkins installation details and unavailable console screens are not invented.
